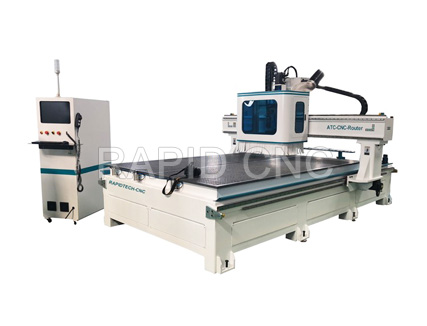

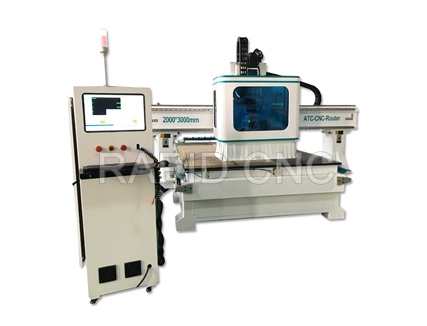

Linear type ATC CNC Router

RD-1325 Linear type ATC CNC Router machine is build with thick steel construction, superior components are adopt to keep high quality, such as Italy HSD spindle, Japan SHIPMO reducer, Japan YASKAWA servo motor, German WNH rack and pinion,etc. So machine’s Max. Speed can up to 45-50m/min.
Linear type ATC is included, 8 position tool holder rack is mounted on the rear of working table, so machine can complete the most complex multi tool tasks effectively.
It is usually applied in wood door furniture industry for a series of complicated processing including cutting, carving, drilling, edge milling and hollow-out engraving.

E-mail Offer
Related Products
Related Products
  • Overview
  • Configuration
  • Video
  • Samples

  • Overview
    RD-1325 Linear type ATC CNC Router machine is build with thick steel construction, superior components are adopt to keep high quality, such as Italy HSD spindle, Japan SHIPMO reducer, Japan YASKAWA servo motor, German WNH rack and pinion,etc. So machine’s Max. Speed can up to 45-50m/min.
    Linear type ATC is included, 8 position tool holder rack is mounted on the rear of working table, so machine can complete the most complex multi tool tasks effectively.
    It is usually applied in wood door furniture industry for a series of complicated processing including cutting, carving, drilling, edge milling and hollow-out engraving.

    Advantage

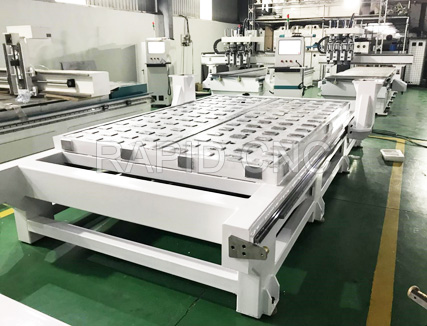

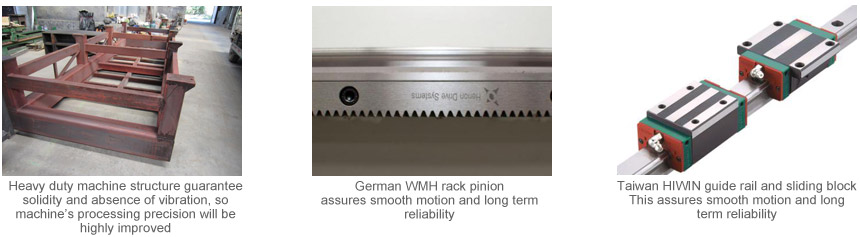

    1. Heavy duty machine structure guarantee solidity and absence of vibration
    so machine’s processing precision will be highly improved.

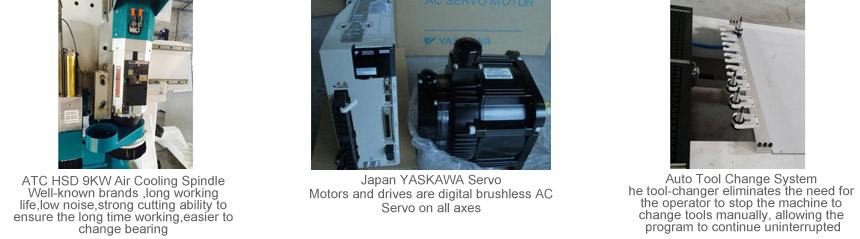

    2. 9kw(12HP) large power air cooling spindle is come from Italy HSD company.
    The programmable speed can up to 24000RPM
    3. Japanese AC servo motors and drives
    The closed-loop control of position, speed and torque is realized, improving precision.
    Rotated speed can up to 3000RPM, good high speed performance
    Heat and noise significantly reduced
    Motor on Z axis has brake system to prevent working table damaged because of spindle falling suddenly
    4. Linear type ATC is included

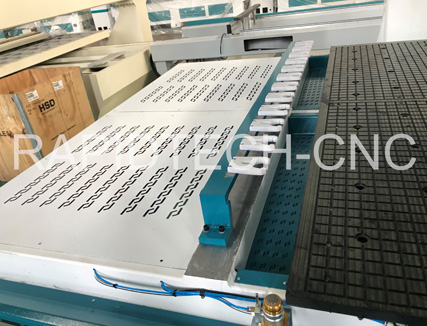

    8 position tool holder rack is mounted on the rear of working table, so machine can complete the most complex multi tool tasks effectively.

    Application
    Woodworking Industry:
    Furniture like solid wood door, PVC wood door, cabinet, window; music instrument; wooden artware
    Decoration Industry:
    Art model, Wall Art, Relief engraving, wave board, gift wrapping, sports equipment, electrical cabinets panels,etc.
    Advertisement:
    Acrylic, double color board, PVC, MDF, ABS,aluminum-plastic board, artifical stone, organic glass, density board, matrix, character, signs, trademarks, soft metal like aluminum, cooper,etc.

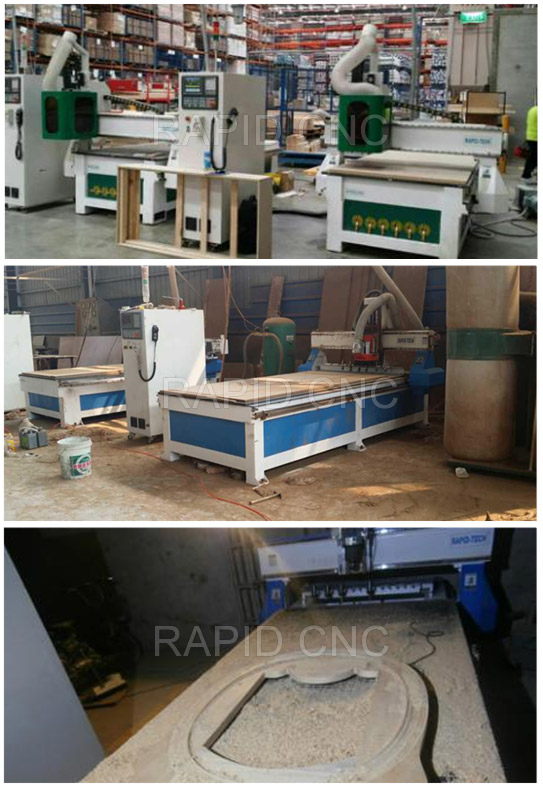

    Machine in client factory

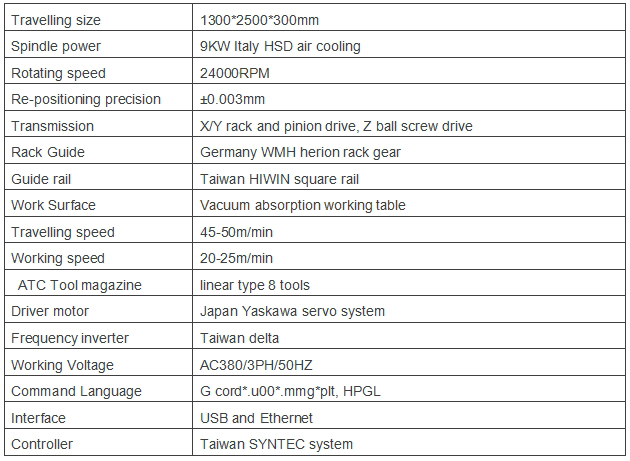

  • Parameter
